30W 1.3Ghz Defense PA
YTNSM-01150130-P43 is a wireless signal shielding module dedicated to 1150-1300MHz signal. This module has the advantages of high average output power, good in band flatness, small upper and lower sideband offset and so on.
Product Descriptions:
Product Specifications
-
Signal bandwidth: 1150-1300MHz
-
Output power: 45dBm
-
Working voltage: 28V
-
Power flatness: <1dB
-
Upper sideband drift: <10 MHz
-
Lower sideband drift: <10 MHz
Product Application
- 1150-1300MHz wireless signal shielding

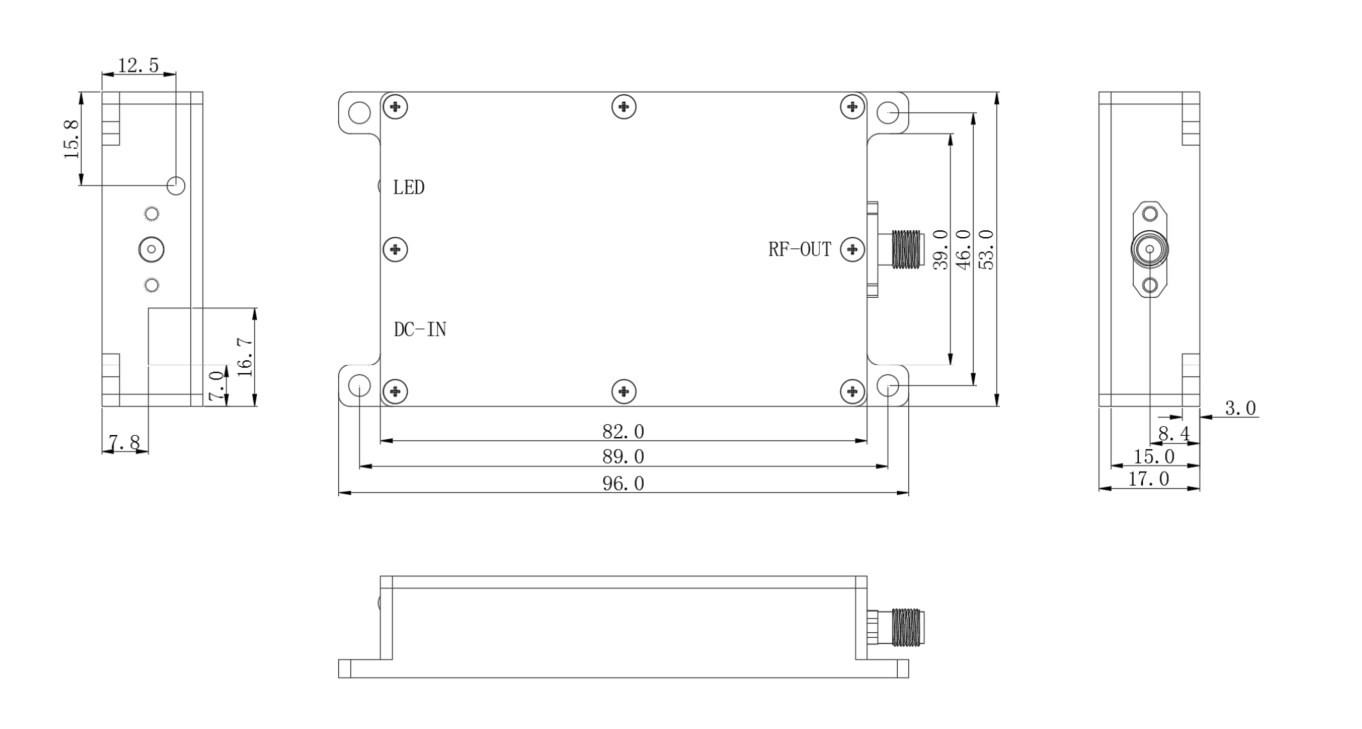

Product Dimensions
Product Dimensions

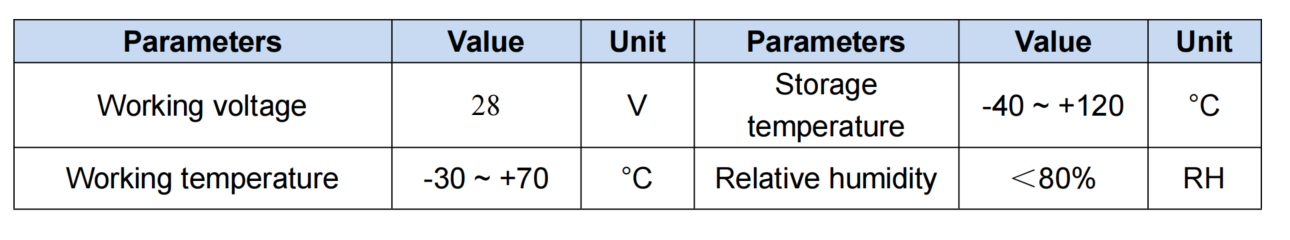

Working Conditions

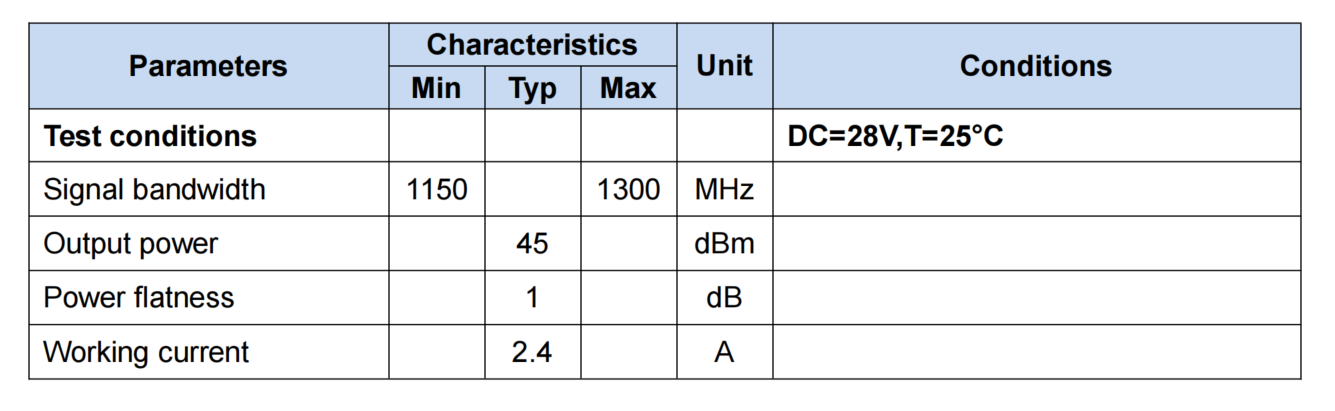

Electrical Characteristics
