30W 5.35Ghz Defense PA
YTNSM-05150535-P45 is a wireless signal shielding module dedicated to 5150-5350MHz signal. This module has the advantages of high average output power, good in band flatness, small upper and lower sideband offset and so on
Product Descriptions:
Product Specifications
-
Signal bandwidth: 5150-5350MHz
-
Output power: 45dBm
-
Working voltage: 28V
-
Power flatness: <1 dB
-
Upper sideband drift: <10 MHz
-
Lower sideband drift: <10 MHz
Product Application
- WiFi、5150-5350MHz wireless signal shielding

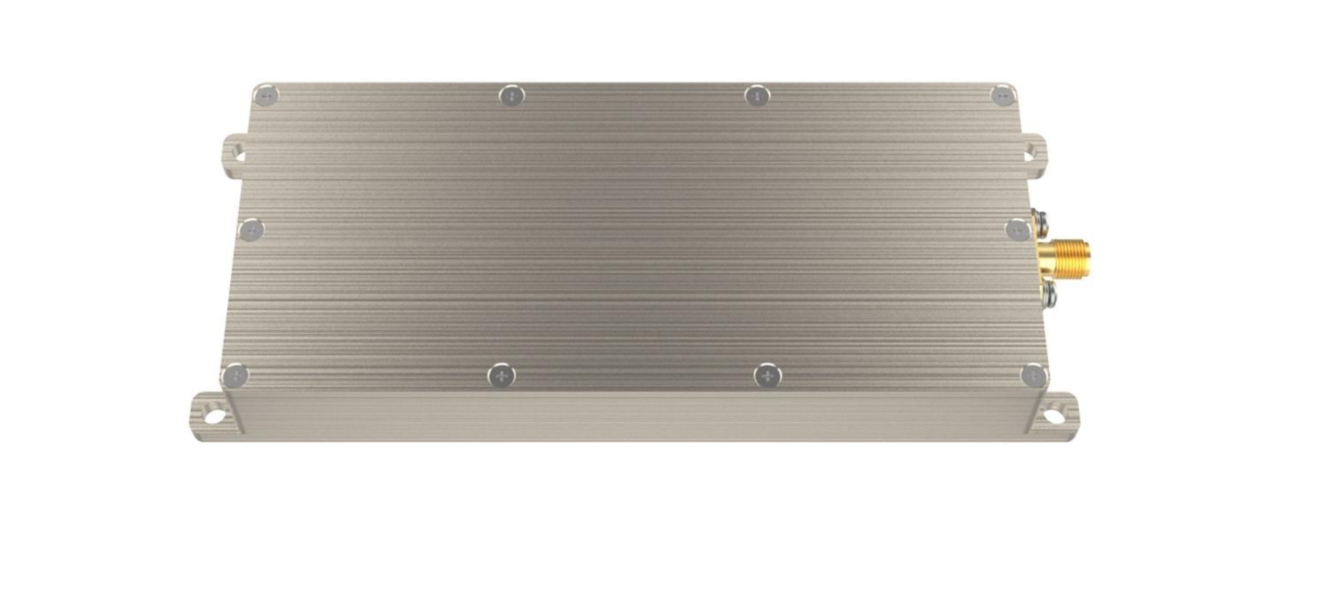

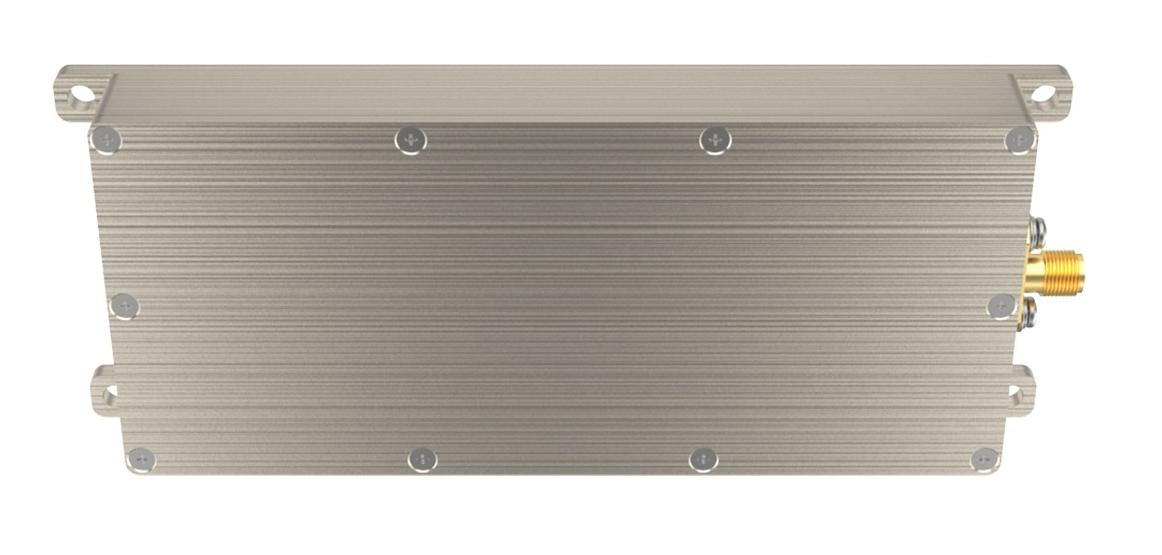

Product Display

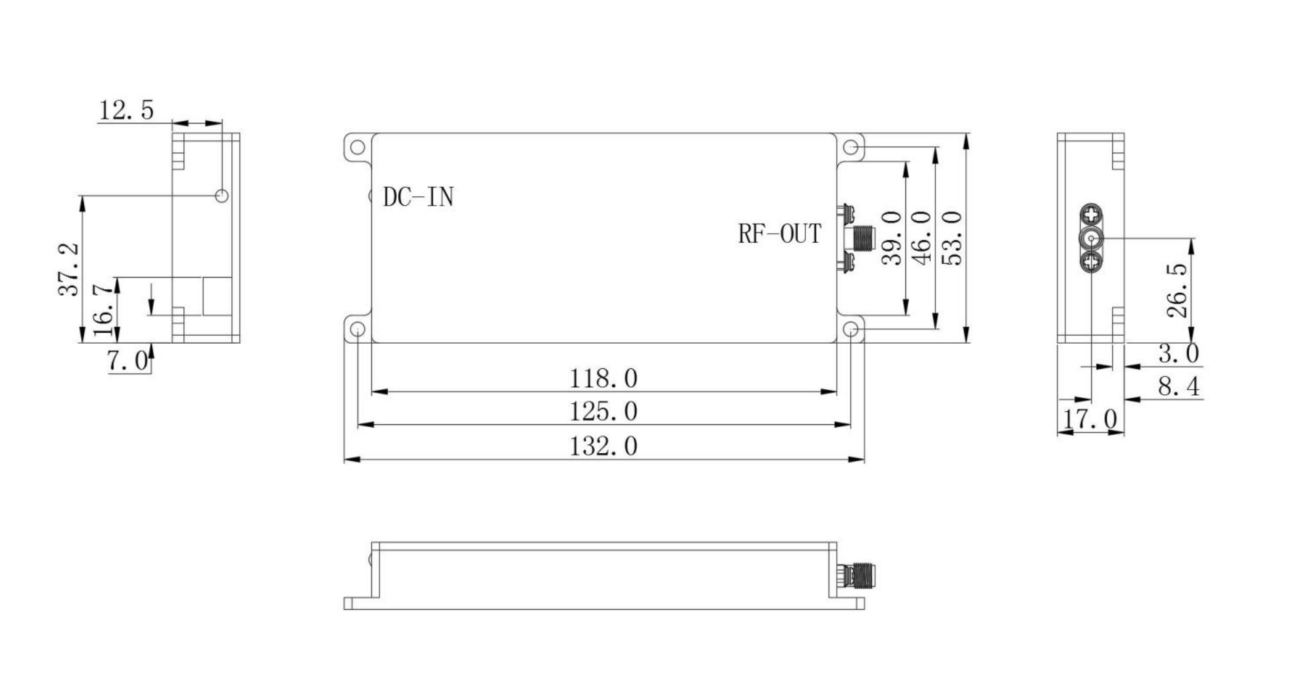

Product Dimensions

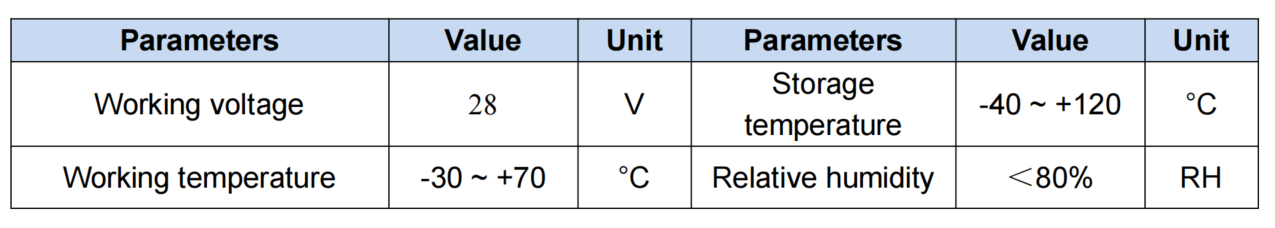

Working Conditions

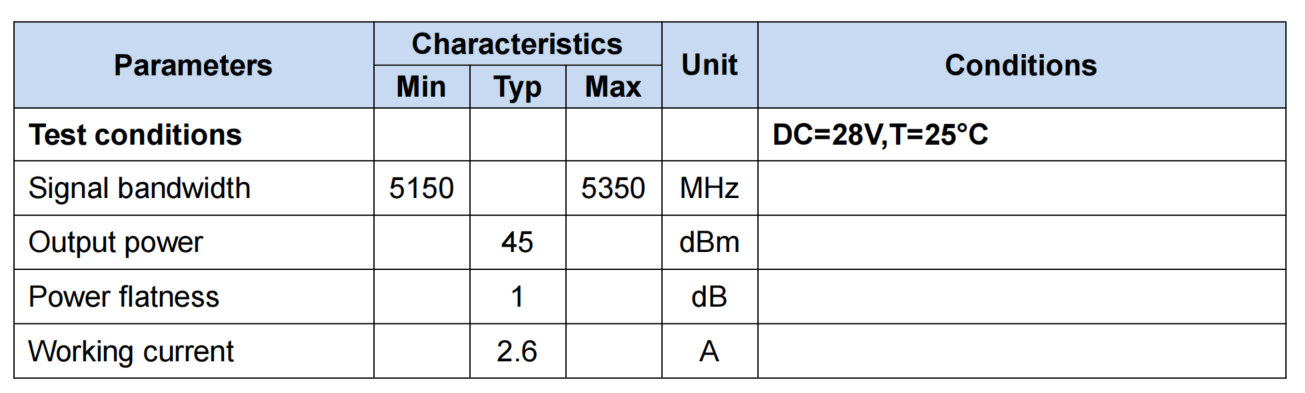

Electrical Characteristics
