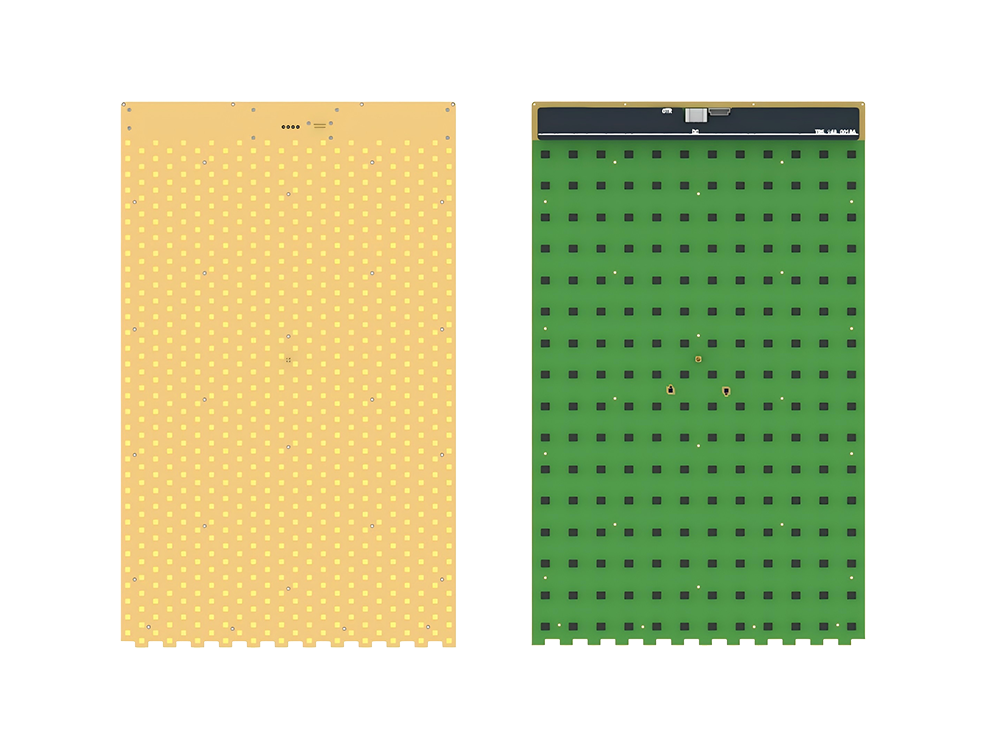

Ku-band 768-element Rx Phased Array Antenna
- One-dimensional Scalable Receiving Phased Array Antenna
- Linear Polarization, Left/Right Hand Circular Polarization, Switchable
- Off-Axis Scan Range: ±70°
- Boresight G/T: ≥9.5dB/K @11.7GHz (40K)
- Beam Switching Time: ≤300μs
- Real-time Temperature Monitoring & Online Upgrade Capability
- Operating Temperature: -40°C ~ +70°C
Product Descriptions:
The Ku-band Single-Beam Receiving array is designed to meet communication requirements for both GEO and LEO satellites, featuring compact size and high G/T, making it suitable for airborne, shipborne, and vehicular platforms.
Technical Parameters
| Items | Technical Parameters | Remarks |
| Working Frequency | Ku-band | 10.7GHz-12.7GHz |
| Layout | 24*32 elements | |
| Polarization | Linear & Circular | |
| G/T | ≥9.5dB/K @ Normal direction | |
| Gain | 70.0 dB @0° @11.7GHz | |
| Beam switching time | 0.3ms | |
| Polarization switching time | 0.5ms | |
| Scan Range | Azimuth 0~360°; Elevation 0~60° | |
| Normal beam width | 5° @ 0° | |
| Normal sidelobe suppression | 12 dB@0° | |
| Cross-Polarization Isolation | ≤ -25 dB @ 0° | |
| Power Consumption | ≤70W@+12V | |
| Size | 449mm*276mm*14.5mm | |
| Weight | ≤1.5Kg |
