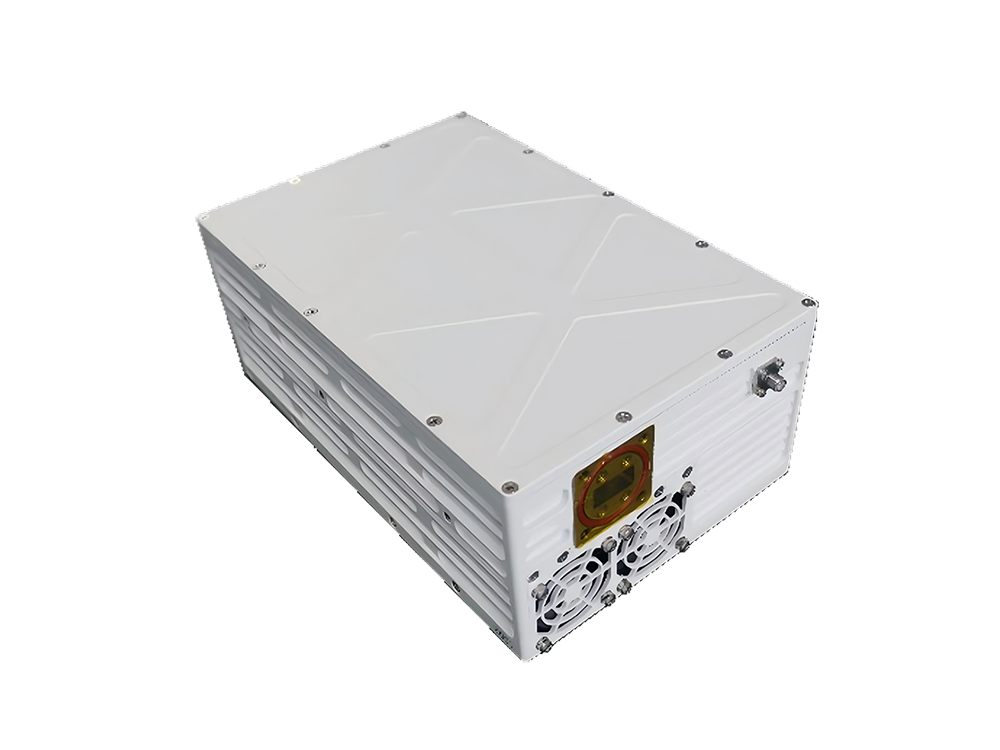

SATCOM series 100W Ku-Band BUC
Main Parameters:
- RF Frequency: Ku-band
- IF Frequency: 950 – 1700 MHz
- Output Power: 50dBm
- Power Supply: 85 to 265V AC, 47 to 63Hz
- Power Consumption: 550W (typ.)
- Size: 230mm×150mm×90mm
- Weight: 4.5kg
Product Descriptions:
BUC Interfaces & Power Supply
| IF Input Connector： | N-Type Female |
| RF Output Connector： | WR75-G |
| Power Supply Connector： | YGD20S1203J |
| M&C Connector： | YLH24S0809K,Support RS-232/RS-485/Ethernet |
| RF Sampling Connector: | SMA-Type Female |
| Power Supply： | 85 to 265VAC，47 to 63Hz |
| Power Supply Draw @ PRated： | 550W（typ.） |
| LED Indicators: | Green LED on : Functioning properly, Red LED flashing: PLL alarm |
RF Specifications
| RF Frequency | 13.75to 14.5 GHz |
| IF Frequency | 950 to 1700 MHz |
| Reference Frequency | 10MHz，0dBm±5dBm |
| Saturated Output Power | 50 dBm min. |
| Rated Output Power | 50 dBm |
| Linear Output Power | 47 dBm |
| Third Order Intermodulation | -25 dBc max. |
| Small Signal Gain | 75 dB |
| Gain Variation (Fixed Frequency) | 3 dB p-p max. |
| Gain Variation (Fixed temperature) | 1 dB p-p max. over 36 MHz,
3 dB p-p max. over 500 MHz 4 dB p-p max. over 750 MHz |
| Gain Adjustment Range | 20 dB, 0.1 dB Ste |
| Phase Noise | -65 dBc/Hz max. @100 Hz
-75 dBc/Hz max. @1 KHz -85 dBc/Hz max. @10 KHz -95 dBc/Hz max. @100 KHz |
| Output Spurious | -60 dBc max. |
| Output VSWR | 1.25：1 |
| Input VSWR | 1.5：1 |
Physical
| Weight | 4.5kg |
| Size（L×W×H） | 9.1”×5.9”×3.5‘’（230mm×150mm×90mm） |
| Operating Temperature | -40℉ to 140℉（-40℃ to +60℃） |
| Humidity | 0% to 100% |
| Altitude | 0 to 9842ft |
